BTLG Series

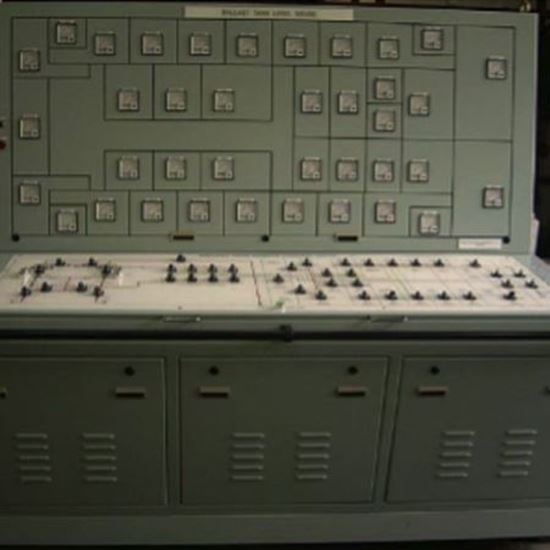

Ballast Tank Level Master - System for Tank Level Gauging

In accordance to IMO and Oil major requirement.

Principle of Operation:

Designed using the air purge method. An air supply is being fed through the purge meter which regulates the required air flow from the top of the purge pipe.

When the air pressure (P) builds up inside the purge pipe until it is equal to the static pressure in the liquid, air is being discharged through the purge mouth at the tank bottom and goes up in the form of bubbles.

The pressure in the pipe (measuring depth) is transferred to the indicator in the control room by signal for remote indication.


  • High reliability.
  • Monitoring and alraming functions.
  • Compact design.
  • Easy maintenance.
  • Intrinsically Safe Design
  • Class approval by major classification societies.
