"ExxonMobil Recommendations:
All vessels fitted with IGS system MUST have a complete spare IGS oxygen (O2) analyser unit. It is Strongly Preferred that this spare IGS O2 analyser is permanently fitted as an additional IGS O2 analyser to serve as a back-up in case of failure of the main IGS O2 analyser.
Daiichi Nekken TB-IIS Oxygen Analyzer is widely used onboard vessel on Inert Gas System(IGS) Oxygen Analyzer. The TB-IIS has proven record in Marine Applications for Inert Gas System (IGS).
Features of TB-IIS Oxygen Analyzer:
- Accepts large flowing quantity of the sample (about 50L/min)
- Measured even if sample gas is dewy
- Simple structure
- Easy maintenance
- (Selector Switch ver.) Adjustable to No 1 or No 2 Oxygen Analyser
If you have an old Oxygen Analyzer that needs new analyzer or requires a Secondary Oxygen Analyzer in-line with existing Oxygen Analyzer, it is possible with Daiichi Nekken Ecoaz TB-IIS.
| Measuring Range |
0 ~ 25 % O² |
| Output |
D.C. 4~20mA, 0~1V |
| Accuracy |
In less than -/+ 2% of full scale |
| Repeatability |
In less than -/+ 2% of full scale |
| Response |
Less than 10 sec (90% of full scale) |
| Alarm |
High/High 5%/8% (default) |
| |
*User can change the set point. |
| Warm up Time |
About 20 min |
| Ambient Temp |
80°C max. for Sensor, -5 ~ 50°C for Control Unit |
| Ambient Humidity |
0 ~ 85% max, non condensing |
| Sample Temperature |
300°C max at sensor inlet |
| Sample Pressure |
0.01Mpa ~ 0.02 Mpa |
| Power Supply |
AC100V -/+10V 200VA Max. |
| Pipe Connection |
JIS 5K 15A Flange for Inlet & Outlet |

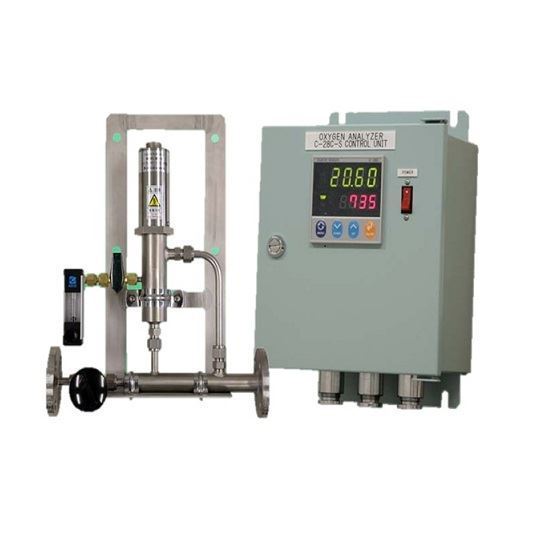

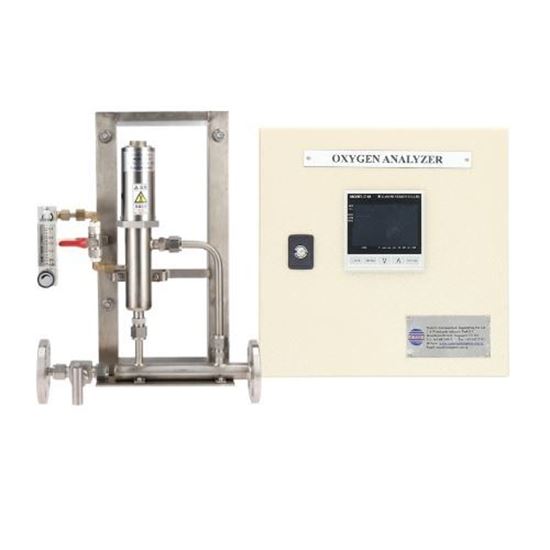

Daiichi Nekken is a Zirconia Electrochemical Type Oxygen Analyzer. It can indicate oxygen concentration in gas continuously. The EcoaZ TB-IIS consists of the sensor and control unit. The control unit indicates an oxygen concentration. The sensor detects the oxygen concentration. Both are connected with the signal cable.
Daiichi Oxygen Analyzer is using Zirconia Ceramic sensing cell. The Zirconia Ceramic works under the high temperature more than about 600°C and becomes able to move in stabilized zirconia.
